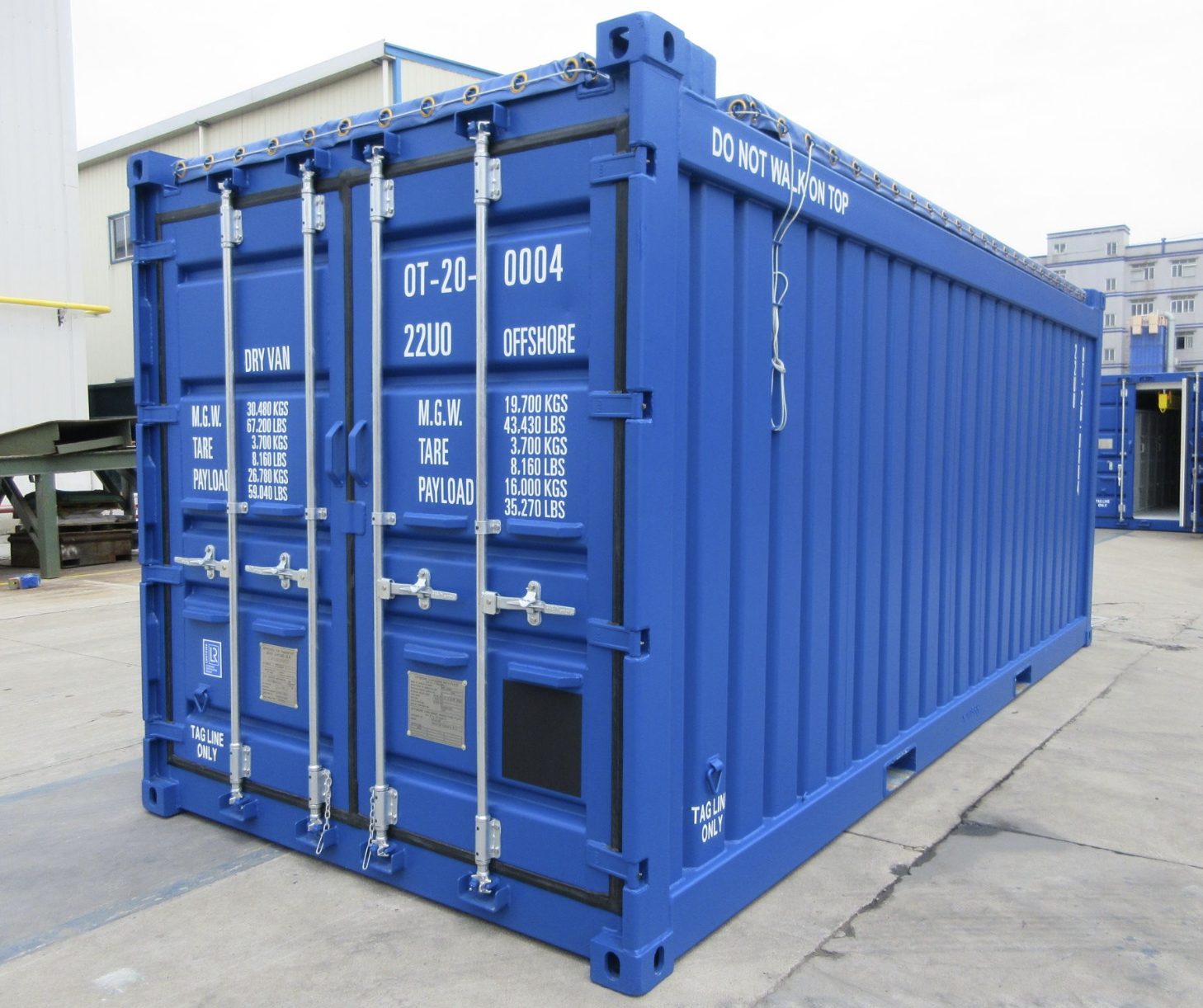

Units with no solid roof. Designed for oversized tall & bulky equipment and crane loading. Features removable roofs or tarps, DNV lifting slings, and internal lashings.

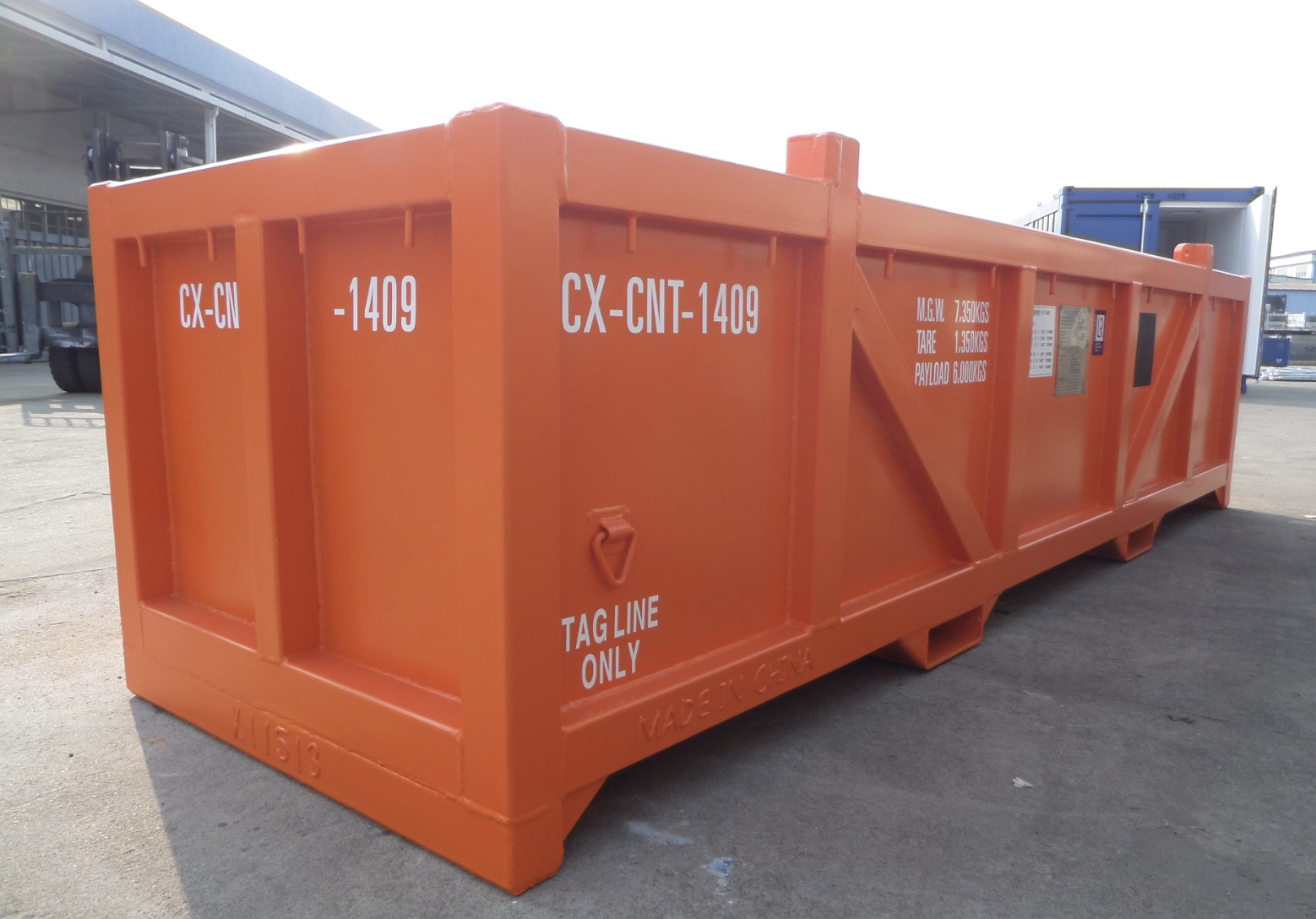

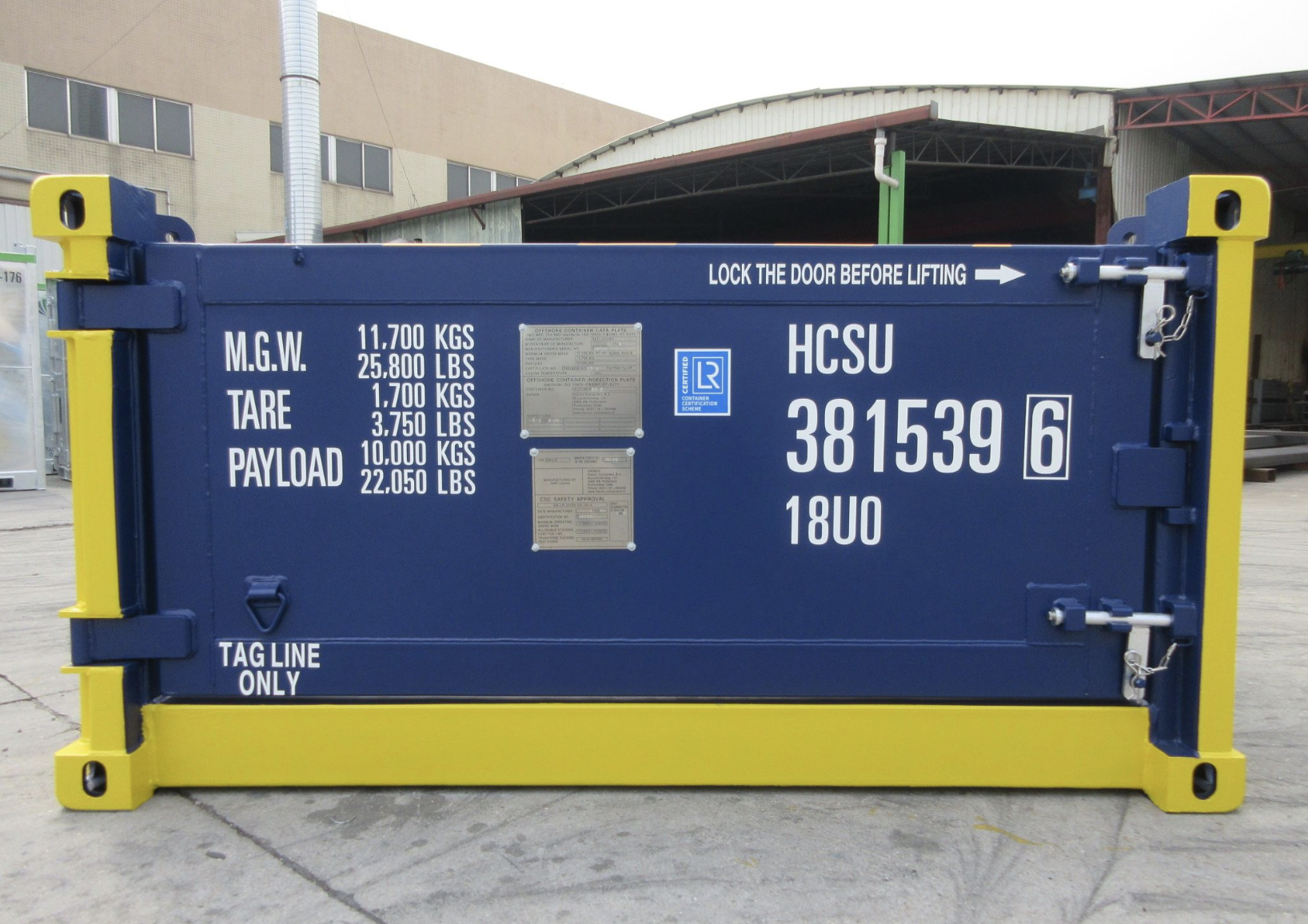

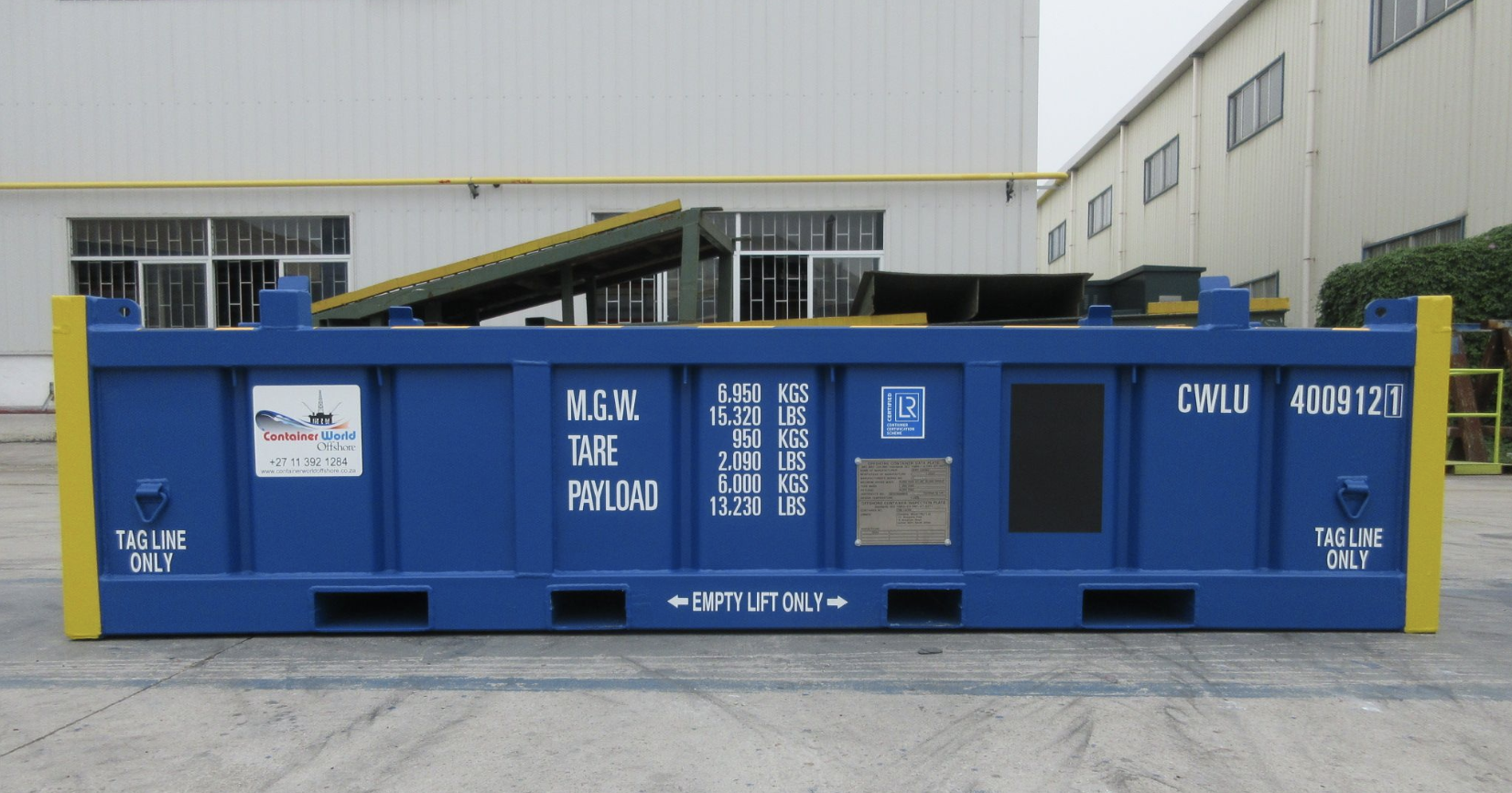

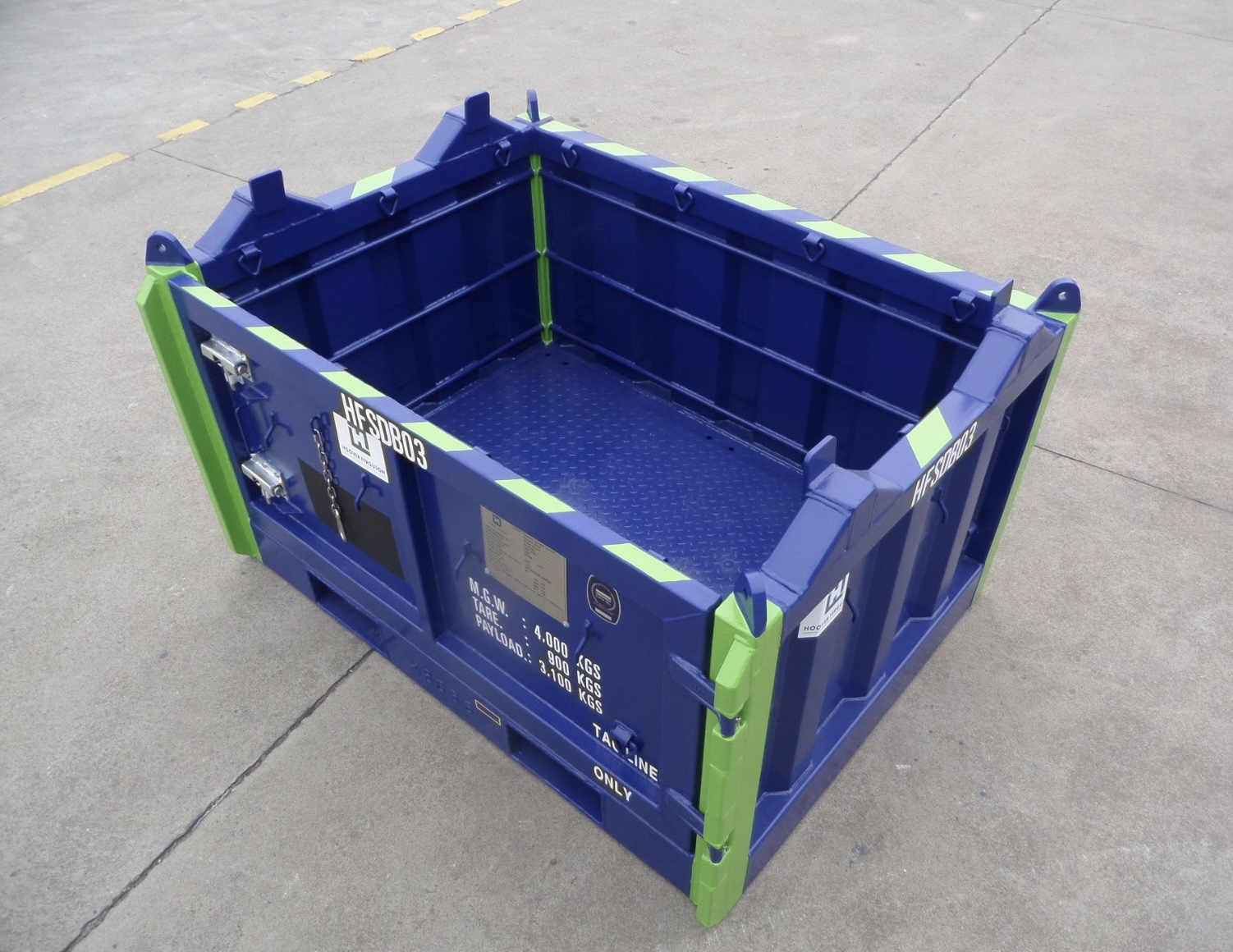

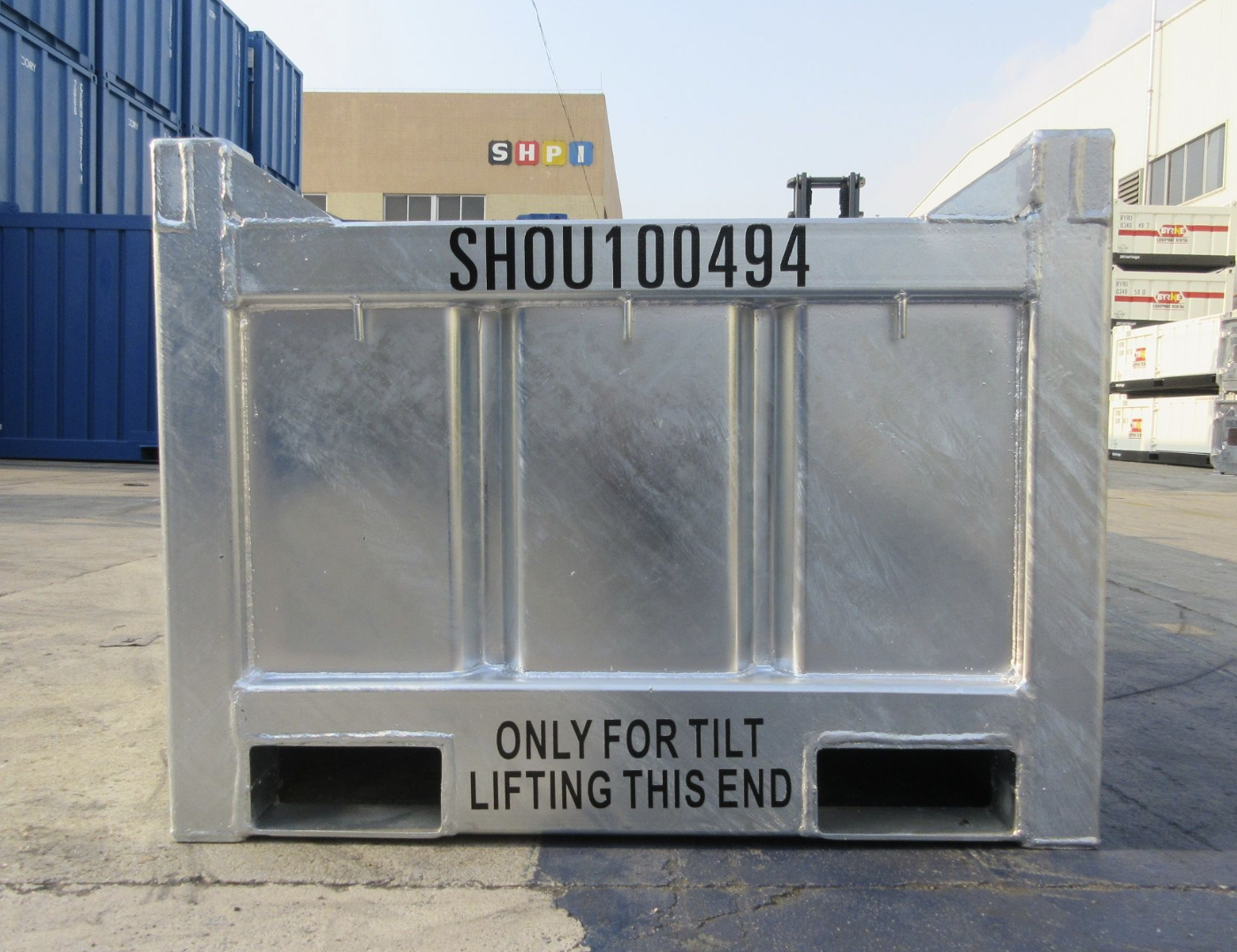

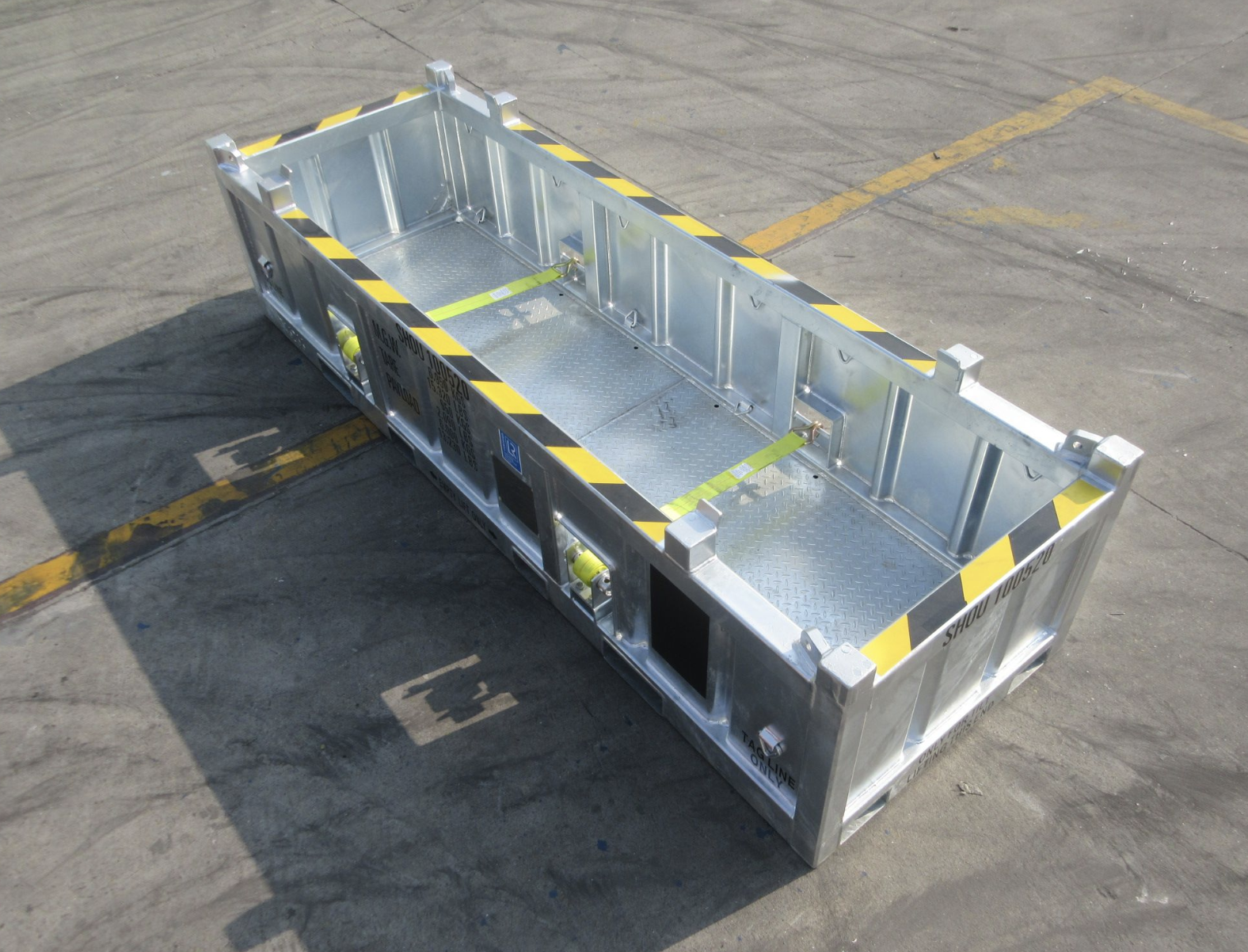

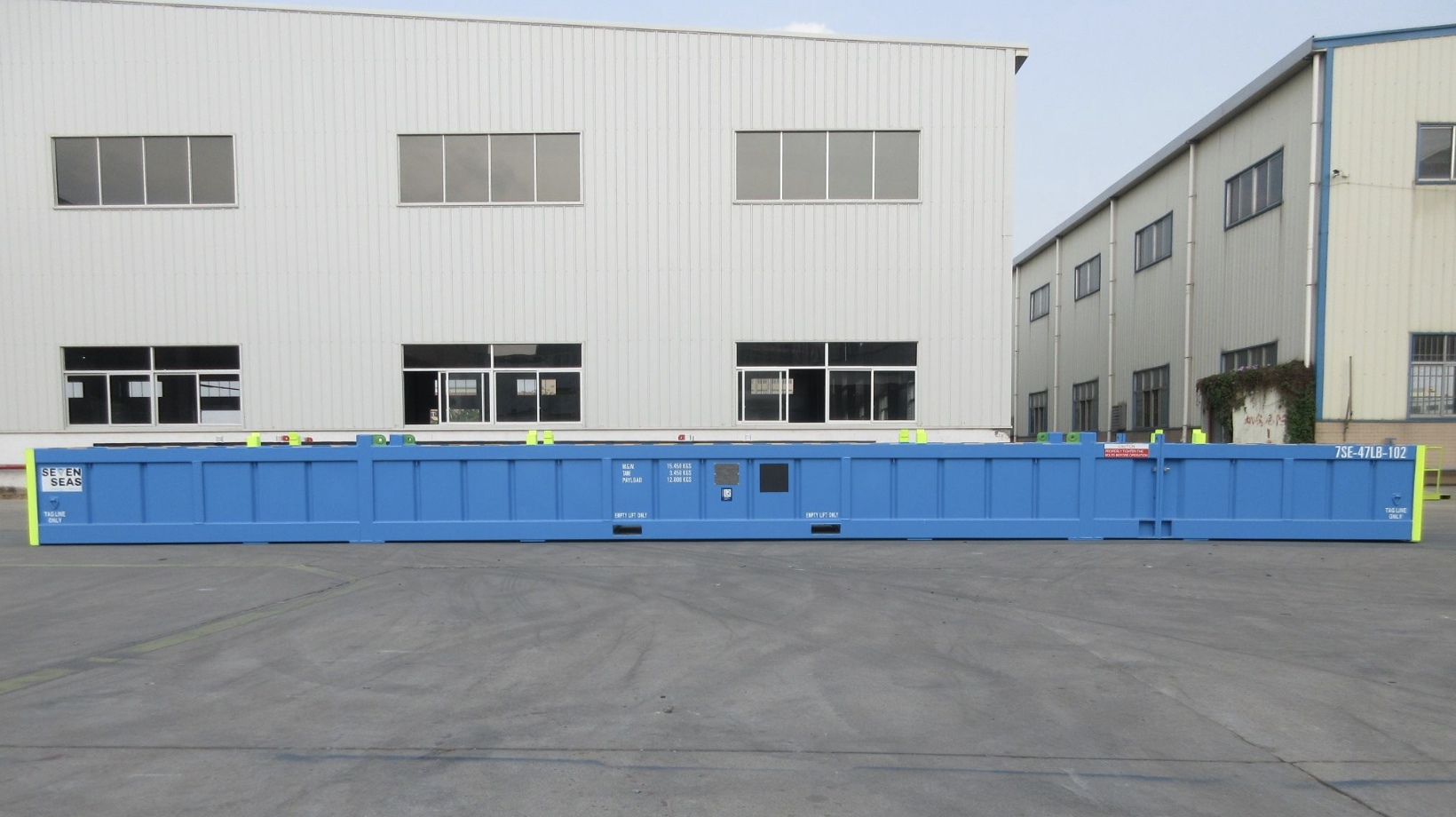

Includes both Cargo Baskets and Half Height Containers
Outside dimensions (L x W x H, mm): 1830 x 1220 x 950
Inside dimensions (L x W x H, mm): 1670 x 1060 x 692
Tare Weight (kg): 530
Max Payload (kg): 5000
MGW (kg): 5530
Outside dimensions (L x W x H, mm): 1830 x 1220 x 950
Inside dimensions (L x W x H, mm): 1670 x 1060 x 692
Tare Weight (kg): 530
Max Payload (kg): 5000
MGW (kg): 5530
Outside dimensions (L x W x H, mm): 3658 x 1200 x 1100
Inside dimensions (L x W x H, mm): 3458 x 1000 x 814
Tare Weight (kg): 1100
Max Payload (kg): 6000
MGW (kg): 7100
Outside dimensions (L x W x H, mm): 3658 x 1200 x 950
Inside dimensions (L x W x H, mm): 3458 x 1000 x 689
Tare Weight (kg): 950
Max Payload (kg): 6000
MGW (kg): 6950
Outside dimensions (L x W x H, mm): 4300 x 1200 x 1100
Inside dimensions (L x W x H, mm): 4100 x 1000 x 820
Tare Weight (kg): 1350
Max Payload (kg): 6000
MGW (kg): 7350

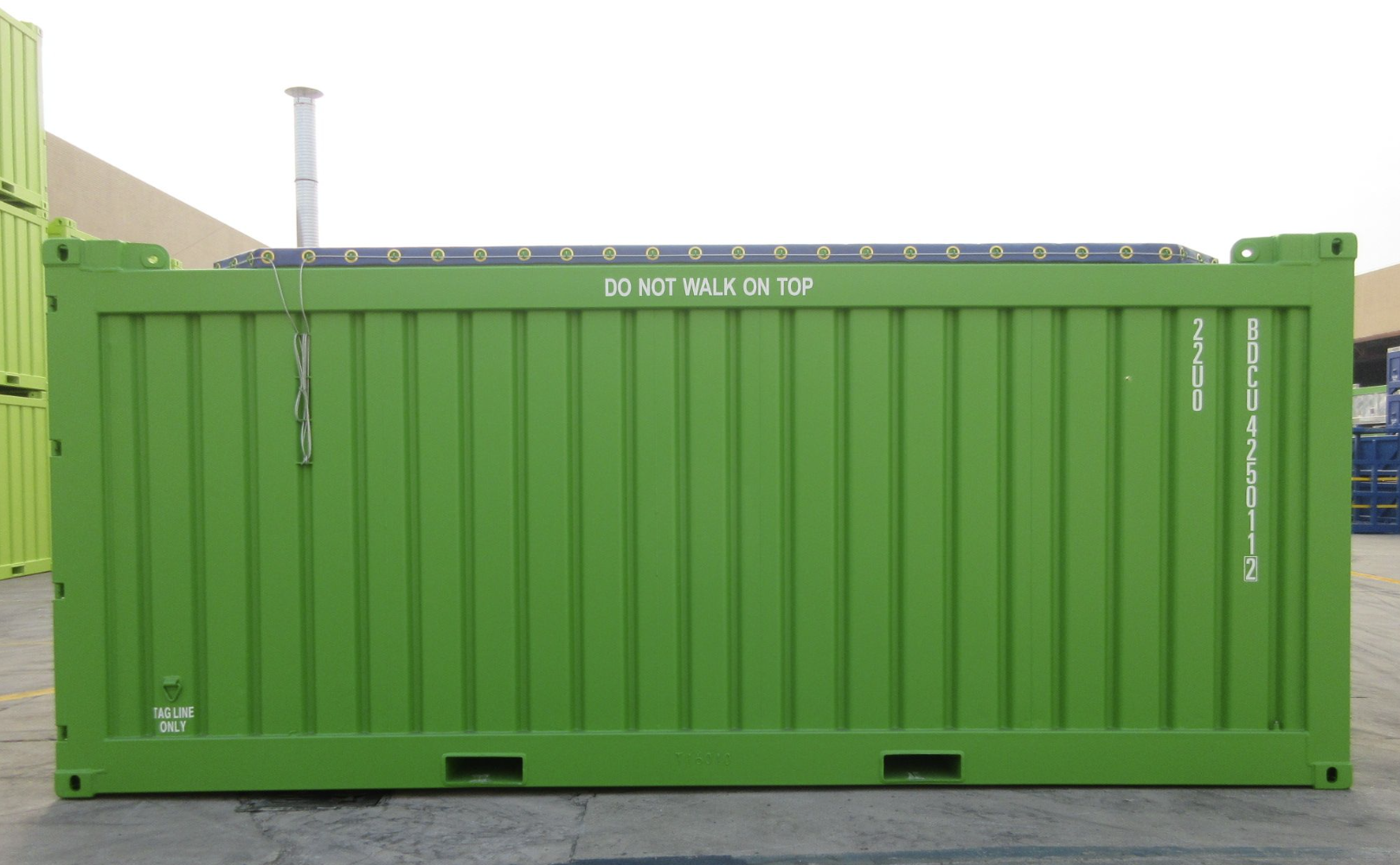

Outside dimensions (L x W x H, mm): 6058 X 2438 X 2591
Inside dimensions (L x W x H, mm): 5848 X 2218 X 2218
Tare Weight (kg): 4500
Max Payload (kg): 12000
MGW (kg): 16500
Outside dimensions (L x W x H, mm): 6706 x 1200 x 1100
Inside dimensions (L x W x H, mm): 6506 x 1000 x 814
Tare Weight (kg): 1700
Max Payload (kg): 8000
MGW (kg): 9700
Outside dimensions (L x W x H, mm): 10300 x 1200 x 1100
Inside dimensions (L x W x H, mm): 10100 x 1000 x 743
Tare Weight (kg): 2600
Max Payload (kg): 10000
MGW (kg): 12600
Outside dimensions (L x W x H, mm): 11900 x 1200 x 1100
Inside dimensions (L x W x H, mm): 11700 x 1000 x 747
Tare Weight (kg): 2800
Max Payload (kg): 10200
MGW (kg): 13000
Outside dimensions (L x W x H, mm): 12200 x 3300 x 2000
Inside dimensions (L x W x H, mm): 11900 x 3000 x 1625
Tare Weight (kg): 7600
Max Payload (kg): 10000
MGW (kg): 17600
Outside dimensions (L x W x H, mm): 14200 x 1403 x 1570
Inside dimensions (L x W x H, mm): 14000 x 1203 x 1203
Tare Weight (kg): 4200
Max Payload (kg): 13000
MGW (kg): 17200
Outside dimensions (L x W x H, mm): 14300 x 1200 x 1200
Inside dimensions (L x W x H, mm): 14100 x 1000 x 793
Tare Weight (kg): 3930
Max Payload (kg): 12000
MGW (kg): 15930
Outside dimensions (L x W x H, mm): 16764 x 1580 x 1320
Inside dimensions (L x W x H, mm): 16416 x 1232 x 854
Tare Weight (kg): 5200
Max Payload (kg): 12700
MGW (kg): 17900
Outside dimensions (L x W x H, mm): 19812 x 1580 x 1320
Inside dimensions (L x W x H, mm): 19464 x 1232 x 915
Tare Weight (kg): 5600
Max Payload (kg): 12700
MGW (kg): 18300
Outside dimensions (L x W x H, mm): 22860 x 1580 x 1320
Inside dimensions (L x W x H, mm): 22512 x 1232 x 915
Tare Weight (kg): 7400
Max Payload (kg): 12700
MGW (kg): 20100
Outside dimensions (L x W x H, mm): 27432 x 1580 x 1320
Inside dimensions (L x W x H, mm): 27132 x 1280 x 870
Tare Weight (kg): 9000
Max Payload (kg): 15875
MGW (kg): 24875
Outside dimensions (L x W x H, mm): 30784 x 1200 x 1200
Inside dimensions (L x W x H, mm): 30484 x 900 x 770
Tare Weight (kg): 8200
Max Payload (kg): 12800
MGW (kg): 21000

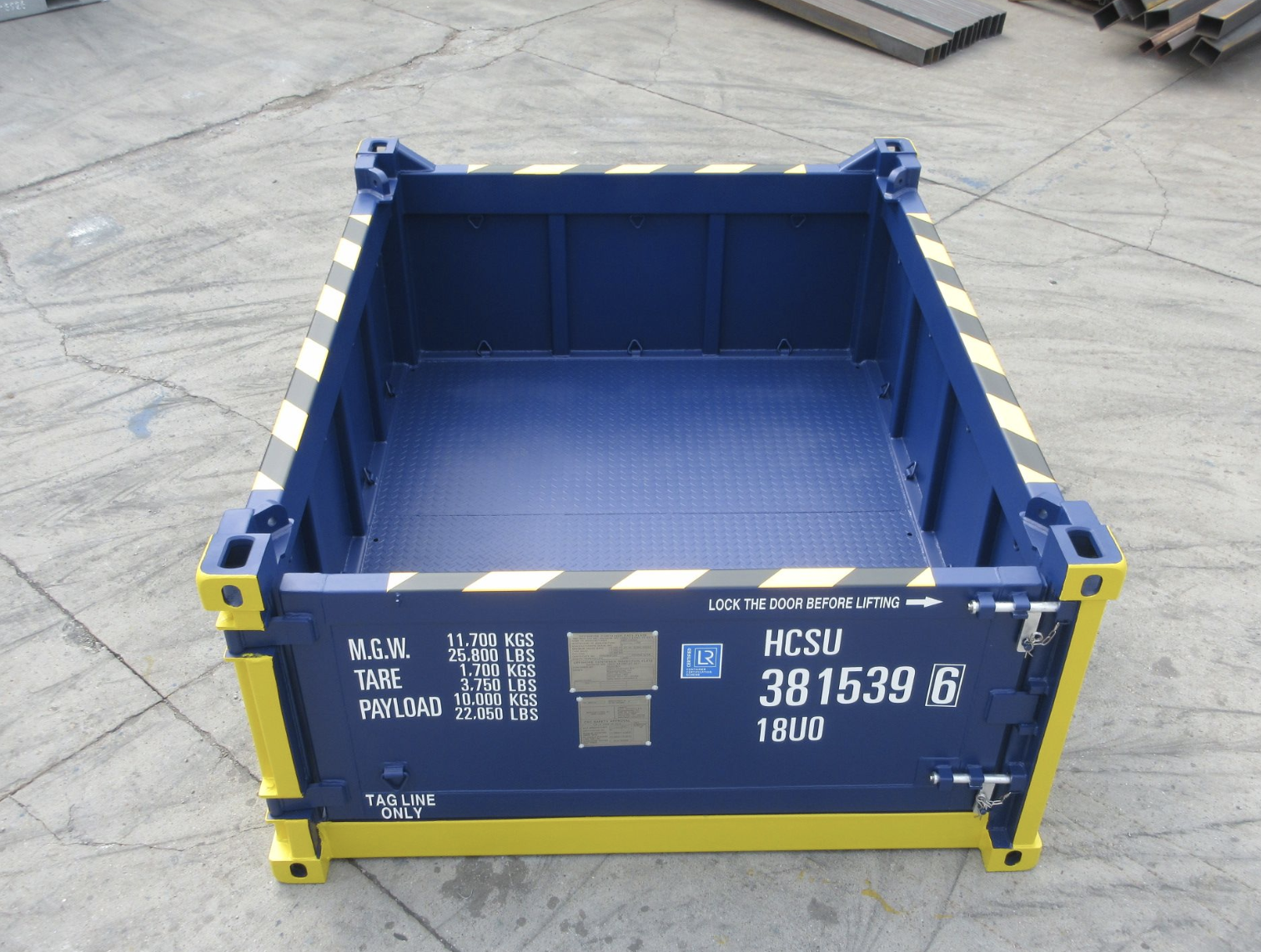

Outside dimensions (L x W x H, mm): 2991 x 2438 x 1280
Inside dimensions (L x W x H, mm): 2738 x 2244 x 959
Tare Weight (kg): 1700
Max Payload (kg): 10000
MGW (kg): 11700
Outside dimensions (L x W x H, mm): 3657 x 1830 x 1245
Inside dimensions (L x W x H, mm): 3453 x 1626 x 959
Tare Weight (kg): 1600
Max Payload (kg): 10000
MGW (kg): 11600
Outside dimensions (L x W x H, mm): 4268 x 2438 x 1255
Inside dimensions (L x W x H, mm): 3944 x 2114 x 934
Tare Weight (kg): 2100
Max Payload (kg): 10000
MGW (kg): 12100
Outside dimensions (L x W x H, mm): 4572 x 2438 x 1280
Inside dimensions (L x W x H, mm): 4356 x 2152 x 884
Tare Weight (kg): 2150
Max Payload (kg): 10000
MGW (kg): 12150
Outside dimensions (L x W x H, mm): 4880 x 2438 x 1280
Inside dimensions (L x W x H, mm): 4556 x 2114 x 907
Tare Weight (kg): 2900
Max Payload (kg): 10000
MGW (kg): 12900
Outside dimensions (L x W x H, mm): 5207 x 2490 x 1498
Inside dimensions (L x W x H, mm): 4883 x 2166 x 1068
Tare Weight (kg): 2900
Max Payload (kg): 19505
MGW (kg): 22405
Outside dimensions (L x W x H, mm): 6058 x 2438 x 1280
Inside dimensions (L x W x H, mm): 5862 x 2194 x 942
Tare Weight (kg): 2550
Max Payload (kg): 10000
MGW (kg): 12550
Outside dimensions (L x W x H, mm): 6058 x 2438 x 1280
Inside dimensions (L x W x H, mm): 5734 x 2114 x 892
Tare Weight (kg): 3380
Max Payload (kg): 16000
MGW (kg): 19380
Outside dimensions (L x W x H, mm): 6058 x 2438 x 1280
Inside dimensions (L x W x H, mm): 5734 x 2114 x 1027
Tare Weight (kg): 2450
Max Payload (kg): 15550
MGW (kg): 18000
Outside dimensions (L x W x H, mm): 7315 x 2438 x 1280
Inside dimensions (L x W x H, mm): 6991 x 2114 x 857
Tare Weight (kg): 4150
Max Payload (kg): 11850
MGW (kg): 16000
Outside dimensions (L x W x H, mm): 2991 x 2438 x 2591
Inside dimensions (L x W x H, mm): 2781 x 2250 x 2246
Tare Weight (kg): 2250
Max Payload (kg): 7750
MGW (kg): 10000
Outside dimensions (L x W x H, mm): 6058 x 2438 x 2591
Inside dimensions (L x W x H, mm): 5836 x 2218 x 2284
Tare Weight (kg): 3700
Max Payload (kg): 16000
MGW (kg): 19700
Outside dimensions (L x W x H, mm): 6058 x 2438 x 2591
Inside dimensions (L x W x H, mm): 5836 x 2214 x 2374
Tare Weight (kg): 4050
Max Payload (kg): 20000
MGW (kg): 24050
Outside dimensions (L x W x H, mm): 12192 x 2438 x 2591
Inside dimensions (L x W x H, mm): 11986 x 2114 x 2250
Tare Weight (kg): 6550
Max Payload (kg): 14450
MGW (kg): 21000
Find clear, direct answers to common questions about our DNV-certified offshore containers and custom-engineered modules.
All offshore containers and modules are engineered and manufactured to meet DNV 2.7-1 standards, ensuring compliance and safety for global energy projects.
Yes. We design and build custom modules and containers tailored to specific offshore, mining, and industrial requirements, all produced in our own facilities.
Our main production sites are in Jiangmen, China (offshore CCU & custom containers) and Tijuana, Mexico (van trailer parts & steel fabrication).
We operate our own manufacturing plants, never outsourcing. This gives us full control over quality, delivery schedules, and technical precision.
Our team includes experienced engineers and project managers who specialize in complex, custom builds for offshore and industrial applications.
You’ll work directly with native English-speaking engineers and project managers, ensuring clear, effective communication from concept to delivery.
