5ft MINI Box

Outside dimensions (L x W x H, mm): 1662 x 1904 x 2770
Inside dimensions (L x W x H, mm): 1482 x 1740 x 2413
Tare Weight (kg): 1700
Max Payload (kg): 4000
MGW (kg): 5700

6ft MINI Box

Outside dimensions (L x W x H, mm): 1830 x 1830 x 2743
Inside dimensions (L x W x H, mm): 1570 x 1670 x 2384
Tare Weight (kg): 1700
Max Payload (kg): 4300
MGW (kg): 6000

6ft tall mini Box

Outside dimensions (L x W x H, mm): 1890 x 1840 x 2990
Inside dimensions (L x W x H, mm): 1710 x 1680 x 2635
Tare Weight (kg): 1730
Max Payload (kg): 6000
MGW (kg): 7730

6ft double tall mini box

Outside dimensions (L x W x H, mm): 1753 x 1905 x 3175
Inside dimensions (L x W x H, mm): 1573 x 1745 x 2812
Tare Weight (kg): 1650
Max Payload (kg): 5000
MGW (kg): 6650

8ft dry goods Box

Outside dimensions (L x W x H, mm): 2378 x 2438 x 2591
Inside dimensions (L x W x H, mm): 2184 x 2242 x 2208
Tare Weight (kg): 2160
Max Payload (kg): 8000
MGW (kg): 10160

10ft dry goods Flat (corrugated specs in brackets)

Outside dimensions (L x W x H, mm): 2991 x 2438 x 2591 (same)
Inside dimensions (L x W x H, mm): 2804 x 2270 x 2303 (2802 X 2288 X 2238)
Tare Weight (kg): 2400 (2200)
Max Payload (kg): 7600 (7800)
MGW (kg): 10000 (10000)

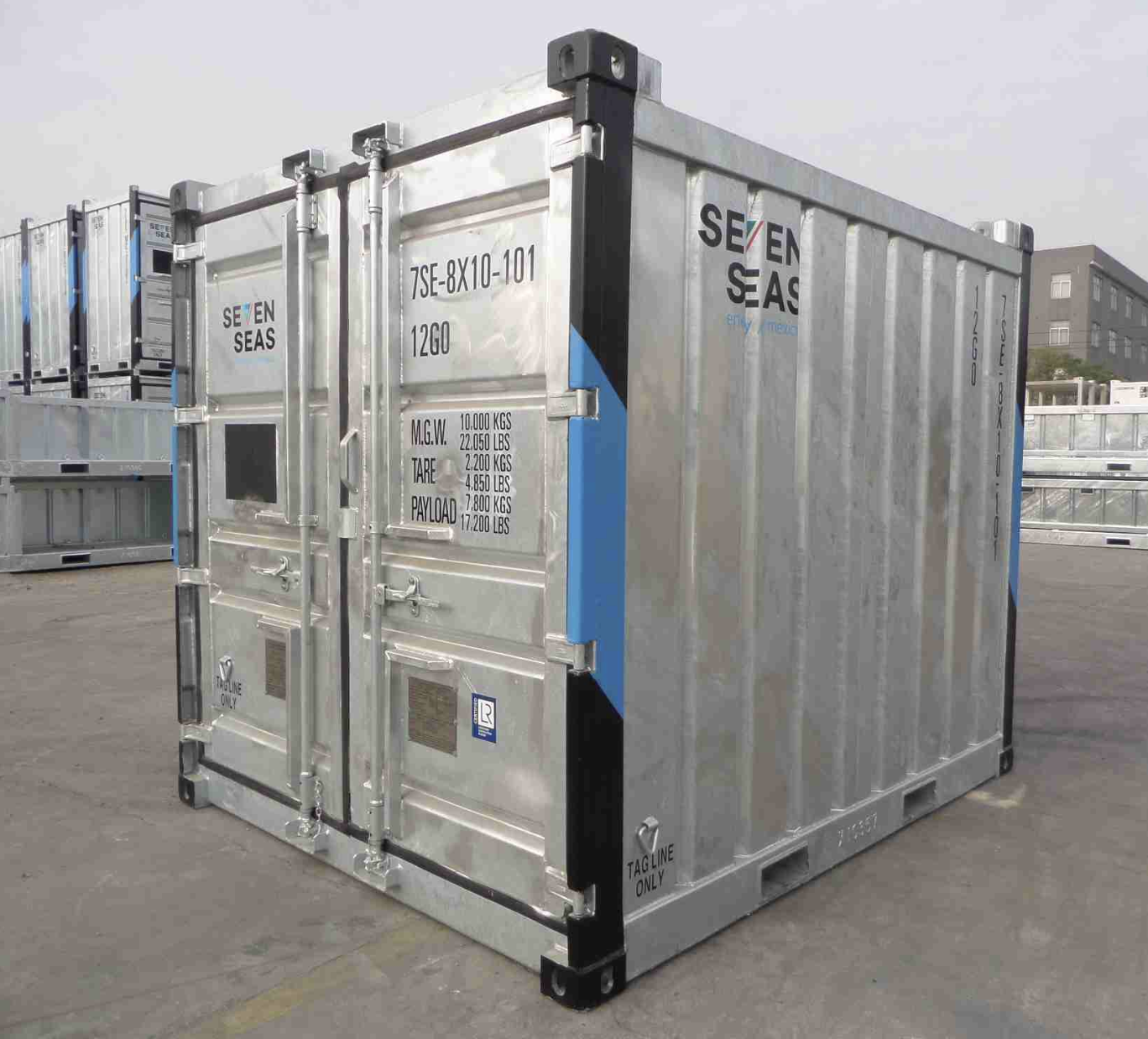

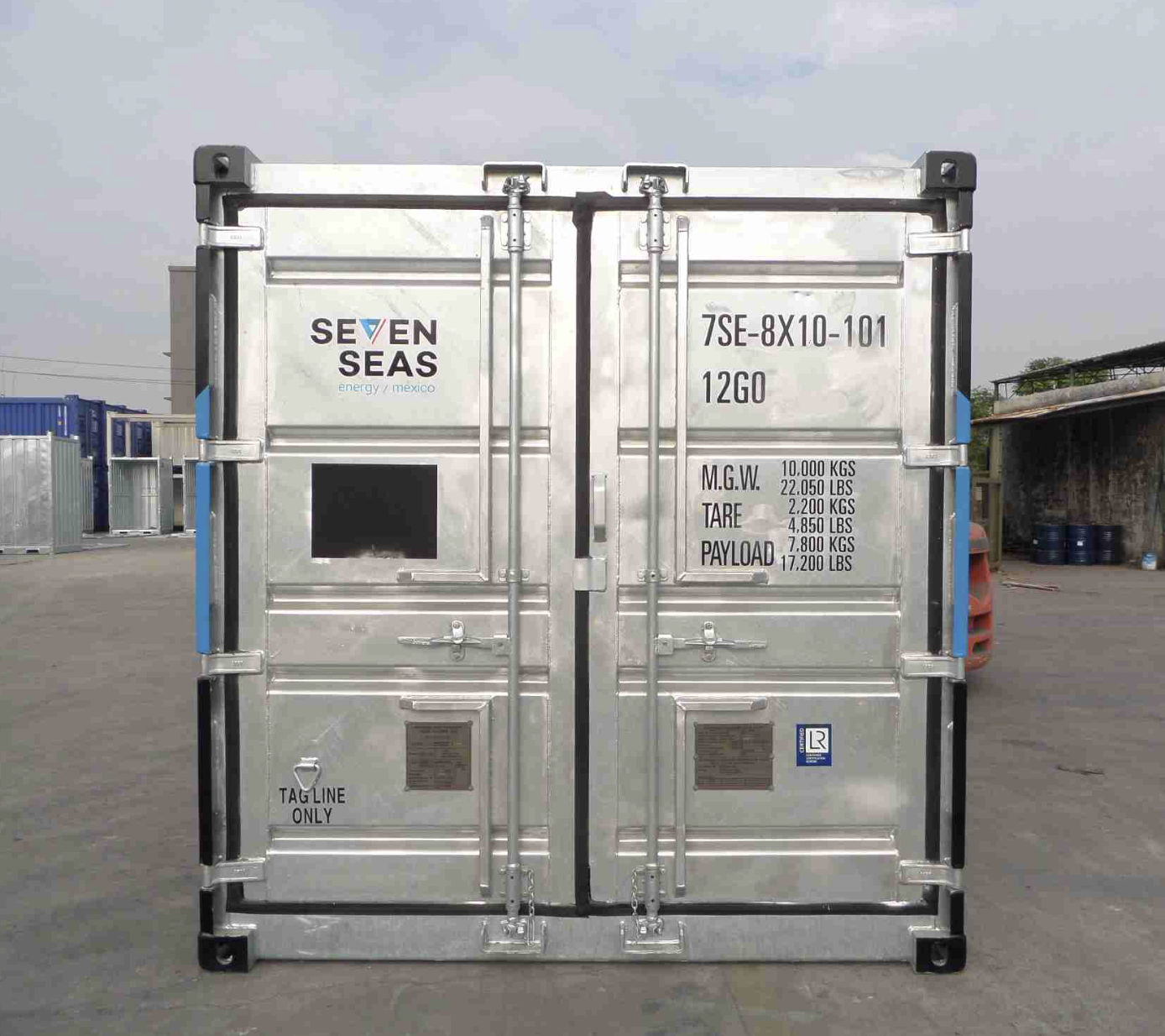

10ft dry goods (corrugated, hdg coating)

Outside dimensions (L x W x H, mm): 2991 x 2438 x 2591
Inside dimensions (L x W x H, mm): 2802 X 2288 X 2238
Tare Weight (kg): 2200
Max Payload (kg): 7800
MGW (kg): 10000

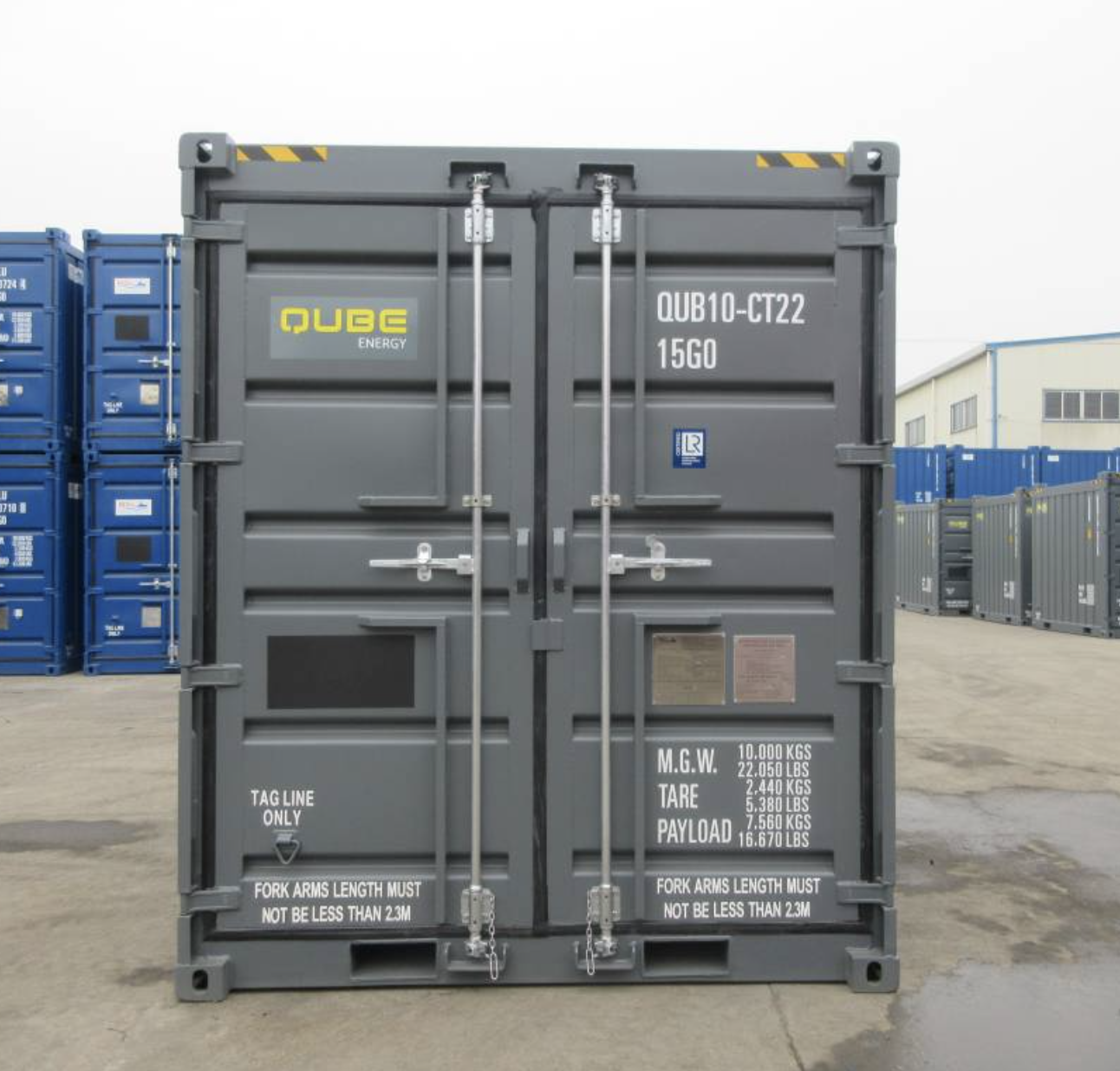

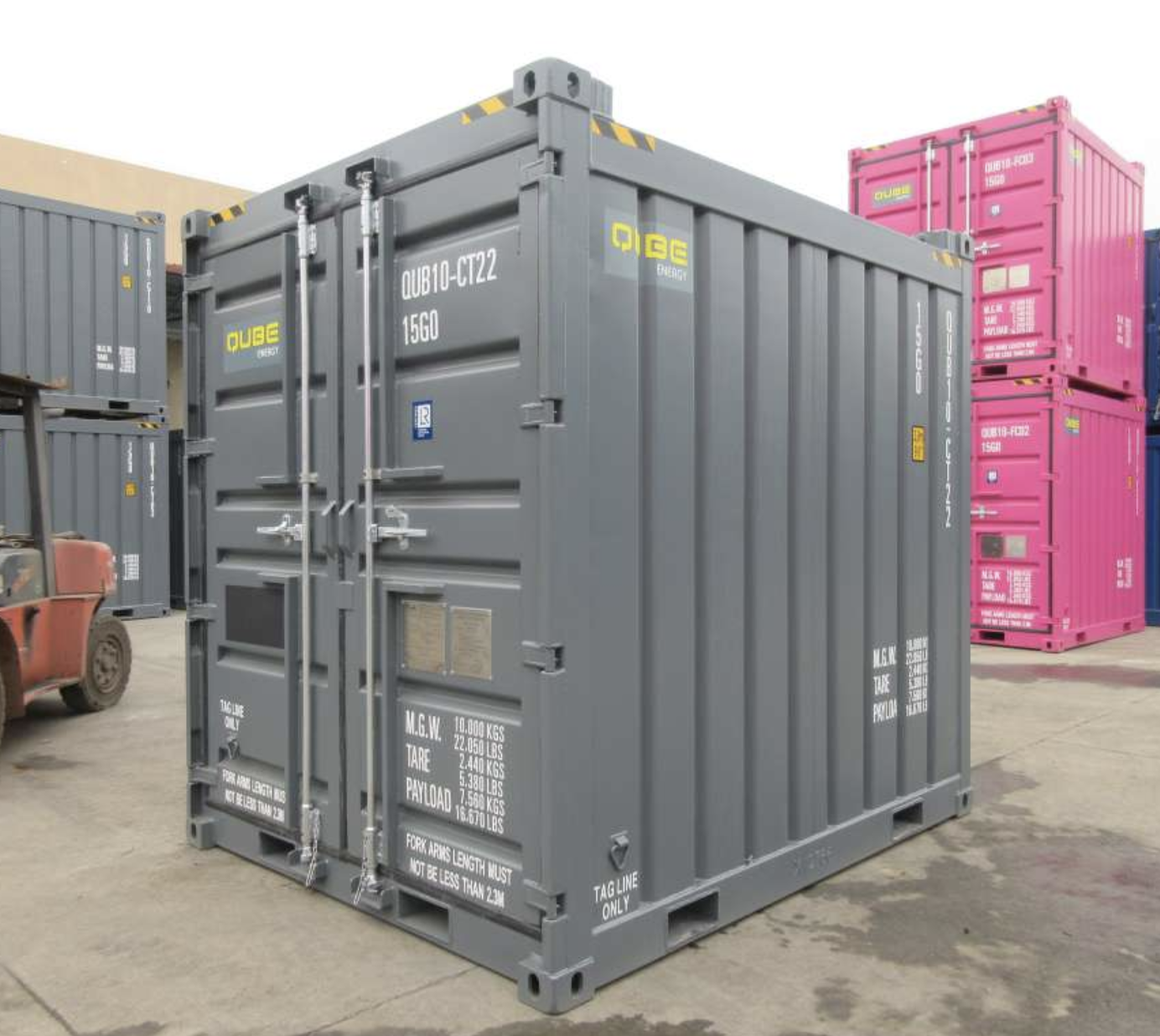

10ft high cube (4 way pocket)

Outside dimensions (L x W x H, mm): 2991 x 2438 x 2896
Inside dimensions (L x W x H, mm): 2802 X 2288 X 2528
Tare Weight (kg): 2440
Max Payload (kg): 7560
MGW (kg): 10000

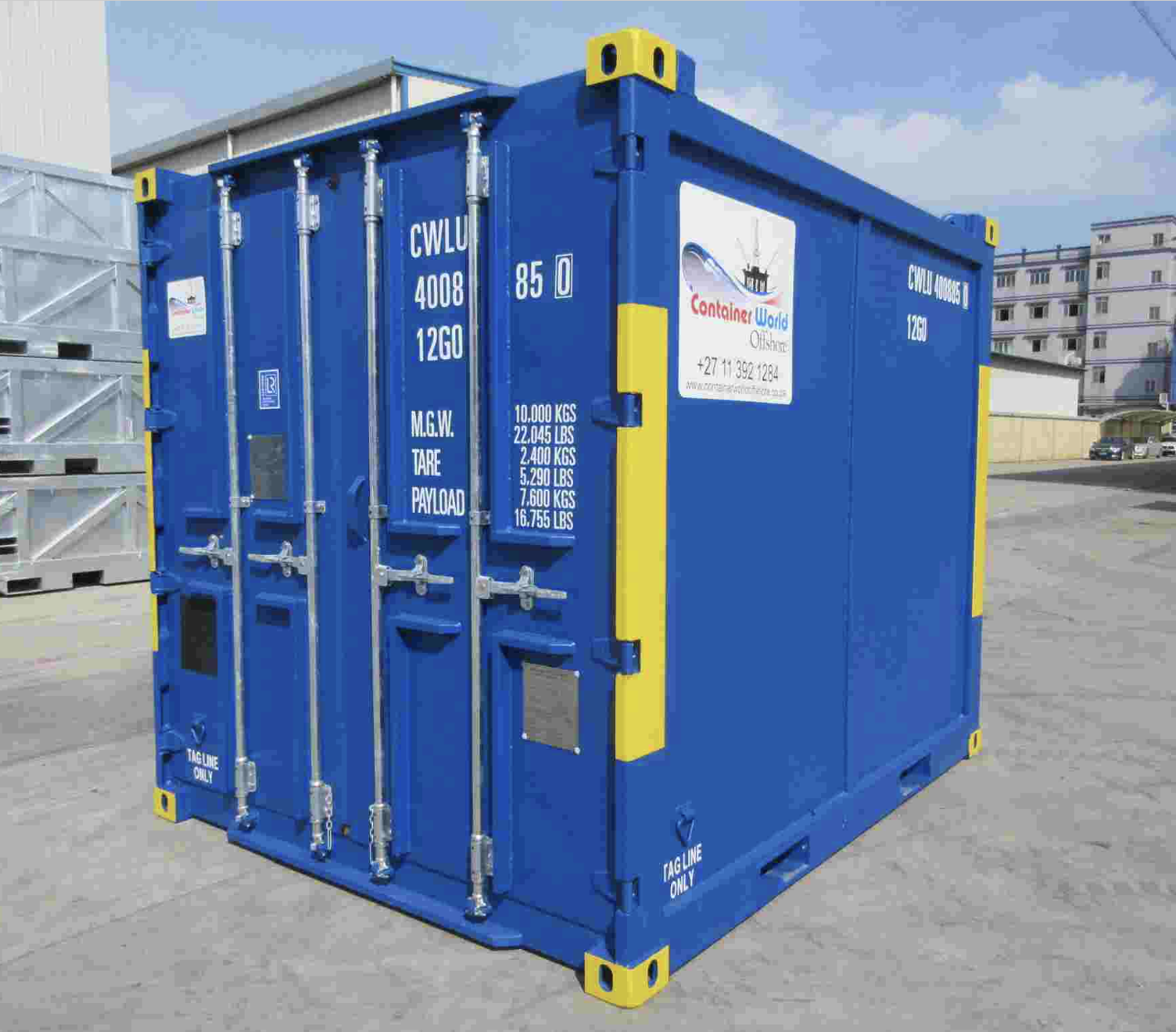

10ft high cube (double door at both ends)

Outside dimensions (L x W x H, mm): 2991 x 2438 x 2896
Inside dimensions (L x W x H, mm): 2755 X 2272 X 2523
Tare Weight (kg): 2550
Max Payload (kg): 7450
MGW (kg): 10000

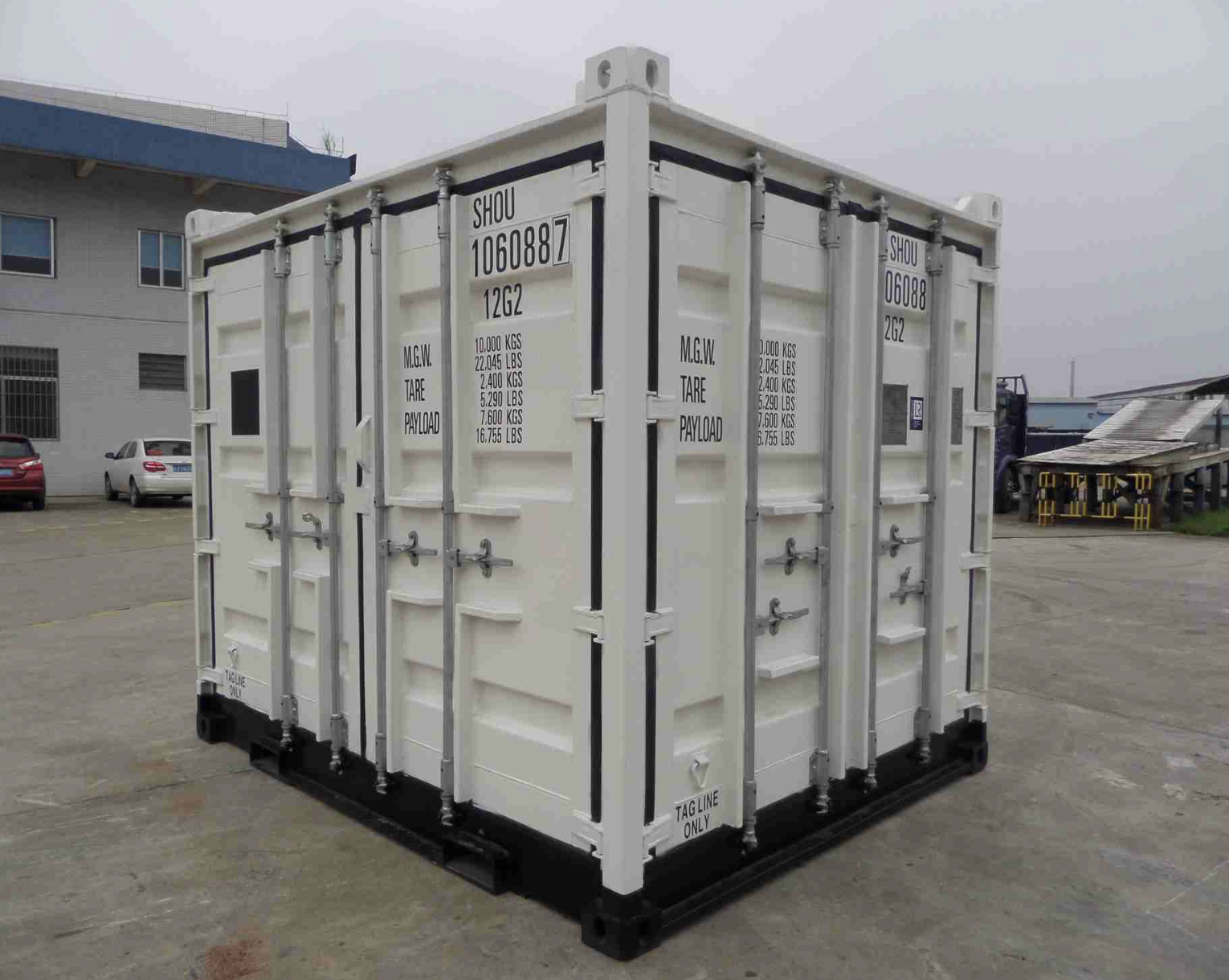

10ft high cube dry goods (double door, rear & side)

Outside dimensions (L x W x H, mm): 2991 x 2438 x 2591
Inside dimensions (L x W x H, mm): 2818 X 2272 X 2208
Tare Weight (kg): 2400
Max Payload (kg): 7600
MGW (kg): 10000

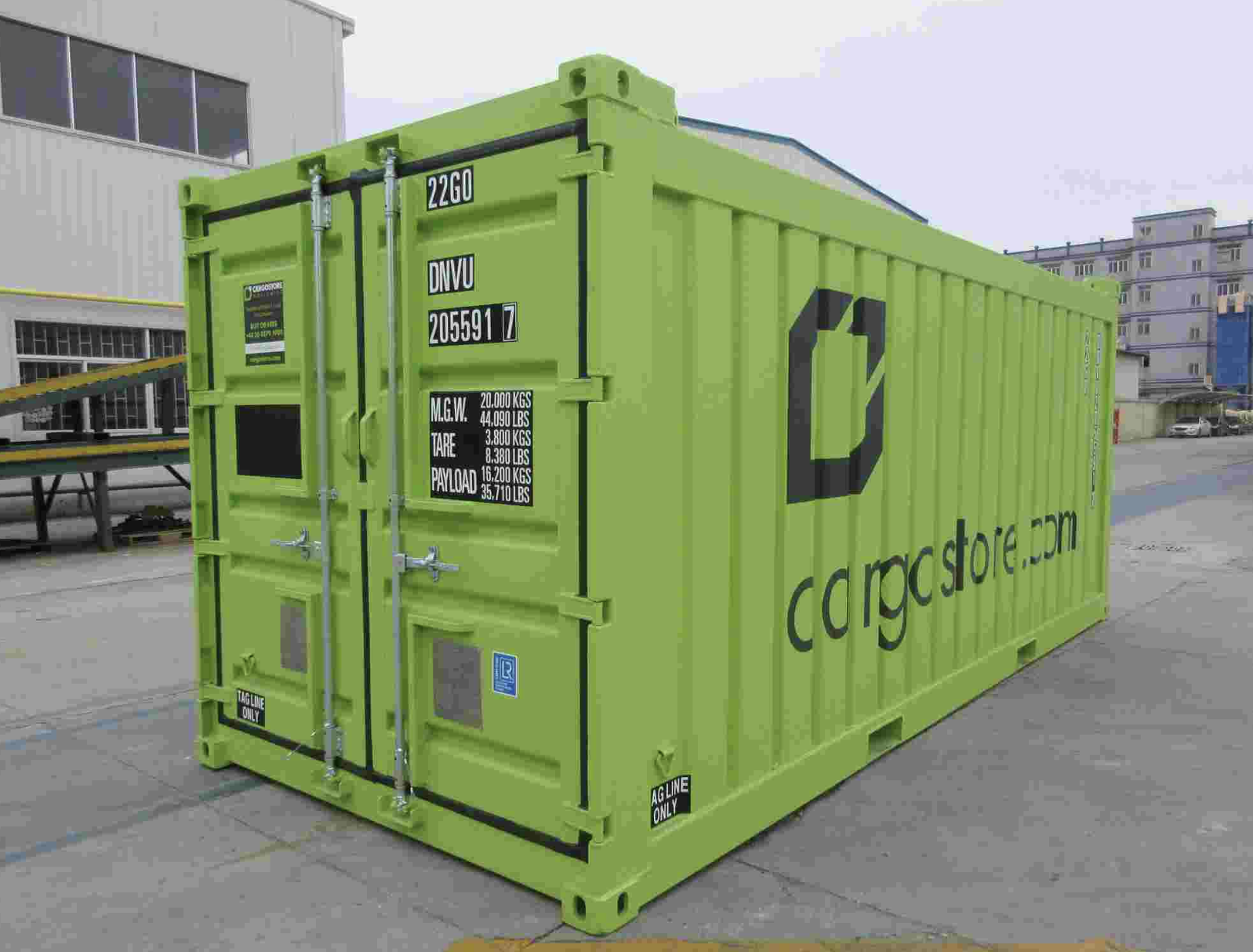

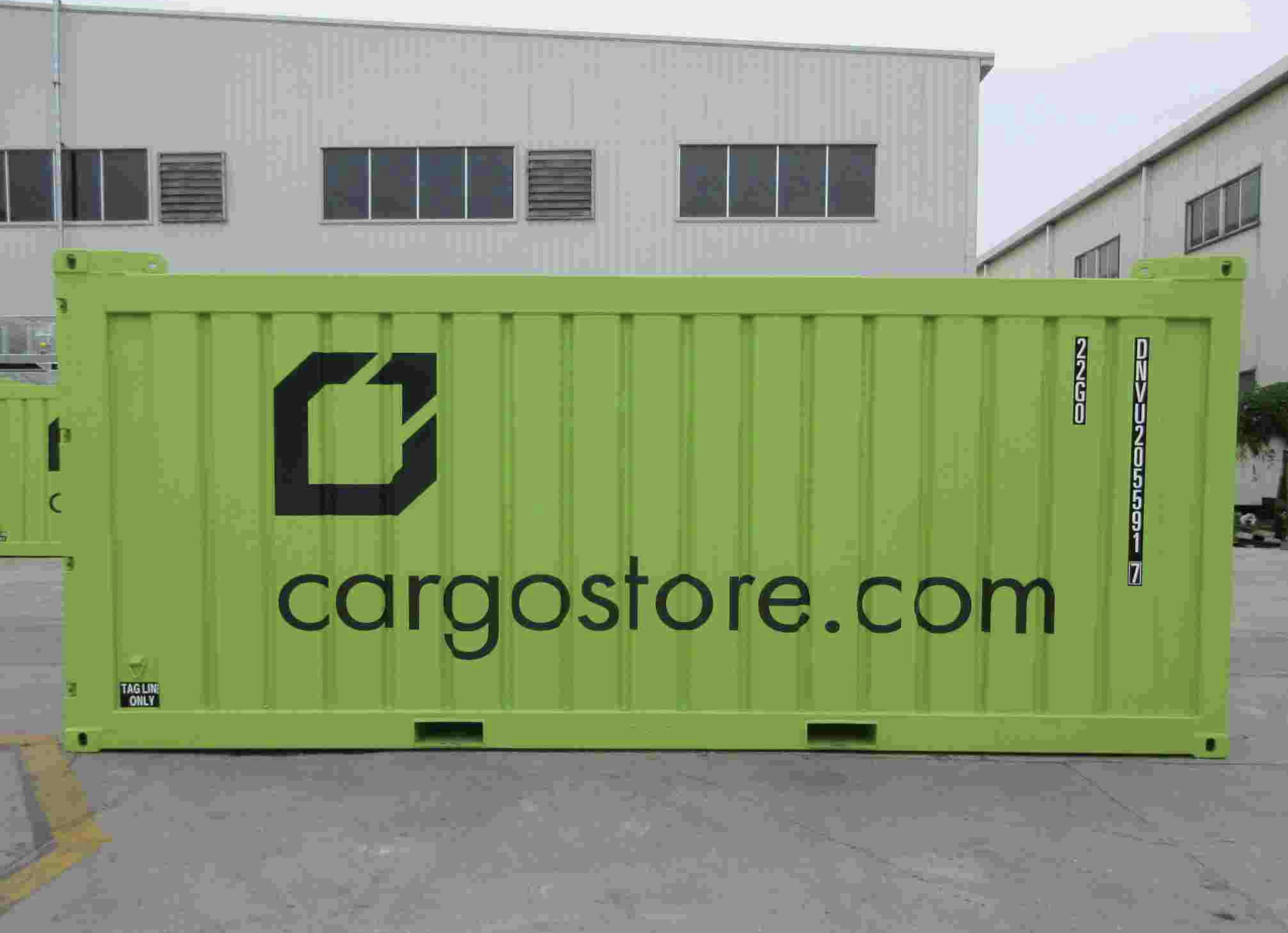

20ft dry goods (corrugated specs in brackets)

Outside dimensions (L x W x H, mm): 2991 x 2438 x 2896 (6058 X 2438 X 2591)
Inside dimensions (L x W x H, mm): 2755 X 2272 X 2523 (5869 X 2308 X 2218)
Tare Weight (kg): 2550 (3700)
Max Payload (kg): 7450 (10000)
MGW (kg): 10000 (13700)

20ft high cube

Outside dimensions (L x W x H, mm): 6058 X 2438 X 2896
Inside dimensions (L x W x H, mm): 5790 X 2218 X 2520
Tare Weight (kg): 4030
Max Payload (kg): 15000
MGW (kg): 19030

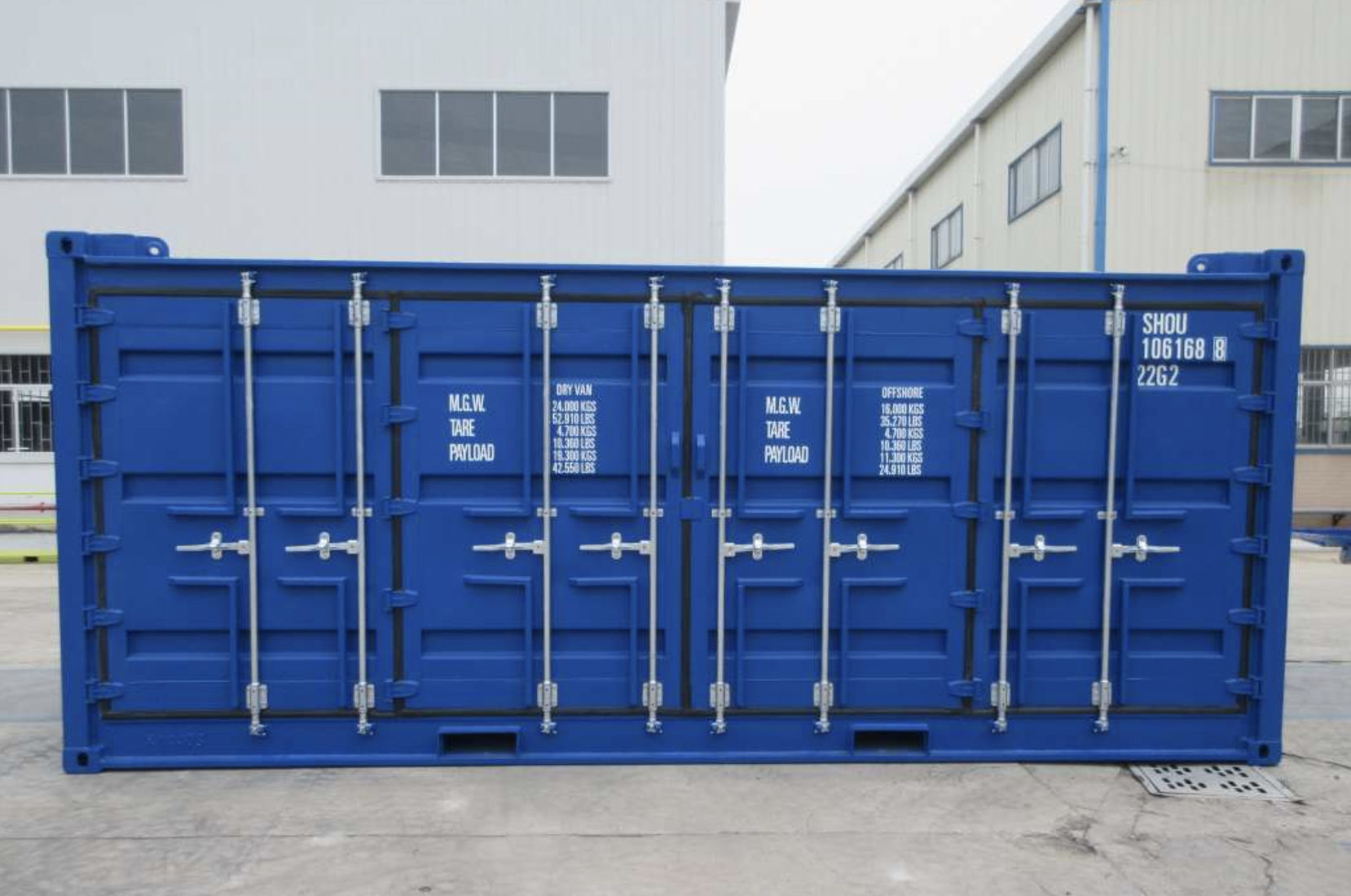

20ft dry goods (double door-rear & full length side access doors)

Outside dimensions (L x W x H, mm): 6058 X 2438 X 2591
Inside dimensions (L x W x H, mm): 5889 X 2273 X 2153
Tare Weight (kg): 4700
Max Payload (kg): 11300
MGW (kg): 16000

20ft dry goods (double door at both ends, flat panel)

Outside dimensions (L x W x H, mm): 6058 X 2438 X 2591
Inside dimensions (L x W x H, mm): 5848 X 2218 X 2218
Tare Weight (kg): 4500
Max Payload (kg): 12000
MGW (kg): 16500

Are SHPI dry goods containers DNV certified?

Yes, all dry goods units are DNV 2.7-1 compliant for offshore lifting and safety. DNV 2.7-1 is the global standard for offshore cargo carrying units, ensuring safety, durability, and compliance in extreme environments.

Do you manufacture all units in-house?

Yes. All SHPI containers and modules are produced in our own facilities for full quality and lead time control. This also means that without the middle-man involve, we can offer you competitive prices directly.

Can you customize the dry goods containers for unique projects? What sizes are available for dry goods containers?

Absolutely. We engineer bespoke CCUs and modules to meet specific offshore, mining, or industrial requirements. SHPI offers dry goods containers in 6ft, 8ft, 10ft, and custom configurations depending on project needs.

Who are your typical clients?

We support offshore energy, oil & gas, mining, and industrial sectors worldwide with certified, custom-built solutions.
